FBS-auto-cooling-pump-seal
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
FBS
Production Capacity:
adequate
Delivery Date:
as per quantity
Style:
Mechanical Seal
Type:
auto cooling pump mechanica...
Means of Transport:
Ocean,Air
Packing:
carton
Standard or Nonstandard:
Standard
Brand Name:
HAGA
For auto cooling pump mechanical seal
1.Spring(65Mn/SUS304/SUS316)
2.Rotary ring(Ceramic/SiC/TC)
3.Outside Cup Gasket(SUS304/SUS316)

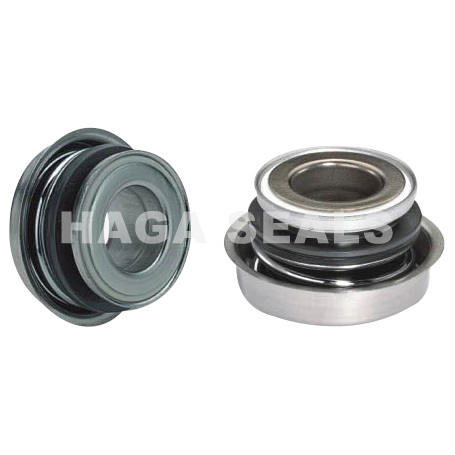

HAGA FBS AUTO COOLING PUMP SEAL

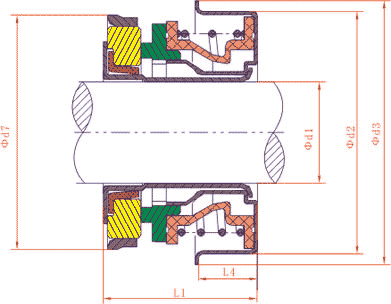

HAGA FBS AUTO COOLING PUMP SEAL DRAWING
OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤0.6MPa
Speed: ≤10m/s
●Axial pipe(SUS304/SUS316)
●
Stationary seat(SUS304/SUS316)
●
Bellows(NBR/EPDM/VITON)
●Spring(65Mn/SUS304/SUS316)
●Rotary
ring(Ceramic/SiC/TC)
●Outside Cup Gasket(SUS304/SUS316)
●
Stationary Ring(Plastic Carbon/Carbon/SiC)
●Inside Cup gasket(NBR/EPDM/VITON)
Model | d1 | d2 | d3 | d7 | L1 | L4 |
HGFBS-16S | 16 | 34.2 | 38.8 | 30.6 | 18 | 5.6 |
HGFBS-16M | 16 | 36.5 | 41.6 | 30.6 | 20.5 | 8.5 |
HGFBS-16L | 16 | 38.1 | 43.5 | 30.6 | 20.5 | 8.7 |
